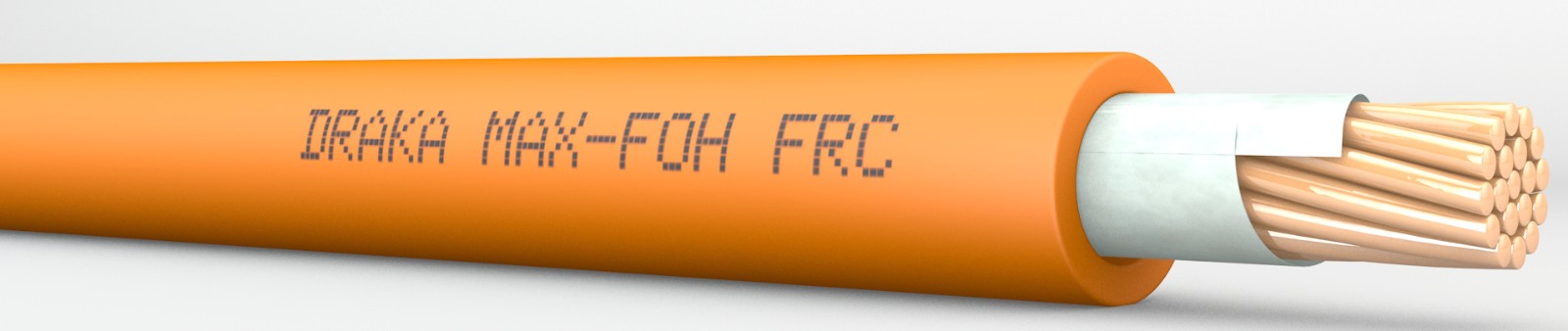

DRAKA MAX-FOH (i) Single Insulation Single Core Fire Resistant Cable
CU/MGT/XLEVA 600/1000V TO IEC 60332-3-22, IEC 60331-21, SS299/BS6387 CAT.CWZ

Application

For use in most power and control circuits.Halogen-free replacement for PVC insulation to
reduce hazardous gas emission and secondary damage. Suitable for fire alarm, lighting system due
to small overall diameter.



Cable Structure & Features

Conductor material (CU) Plain annealed stranded circular copper conductor, Class 2
Fire proof layer (MGT) Mica tape to IEC60331-21/SS229-1/BS6387
Insulation (XLEVA) XLEVA compound

Applicable standards
Design standard:
Conductor standarf:
Flame propagation:
Fire integrity:
Corrosive gas emission:
Smoke emission:
Halogen-free:
IEC 60502-1
IEC 60228, BS 6360
IEC 60332-3-22
IEC 60331-21, SS299-1/BS6387 Cat. CWZ
IEC 60754-2
IEC 61034-2
IEC 60754-1


Technical Data

Sheath colour Black or Red (Other sheath colours are available)
Printing Yes
Rated voltage 600/1000V
Min. insulation Resistance @ 20ºC 2000MΩ/km
Test voltage 3.5KV/5 min
Short circuit temperature 250°C
Max. conductor temperature 90°C
Operating temperature range -15°C / +110°C
Installation temperature 0°C / +50°C
Minimum bending radius 6 x overall diameter
